BOSE SPEAKERS

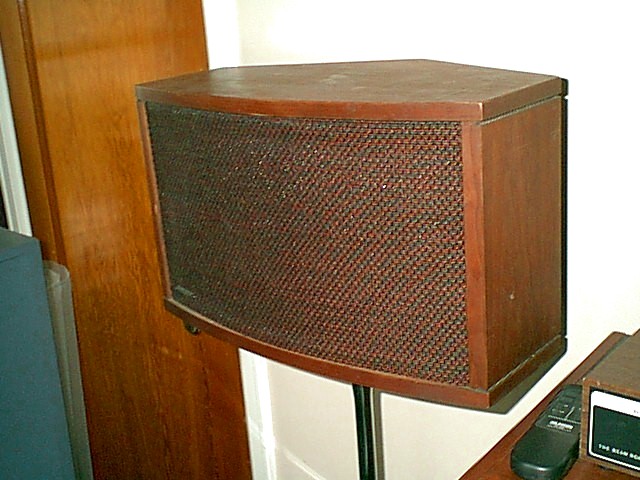

Bose 901 Series III



I started with a pair of 901 III that were intact but tired.

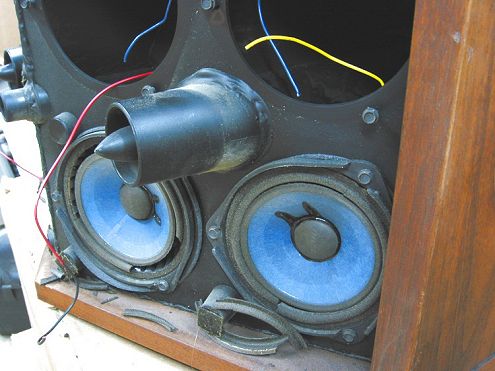

The drivers all needed new foam.

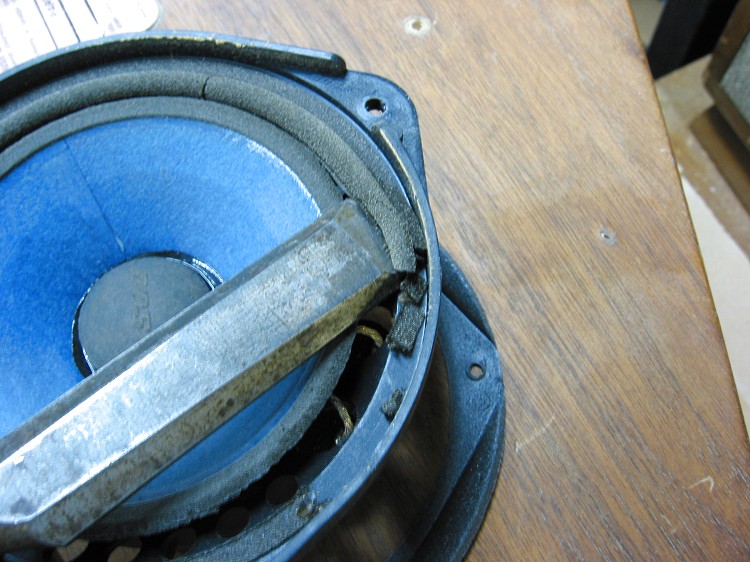

I removed all the drivers and cleaned all the old foam off.

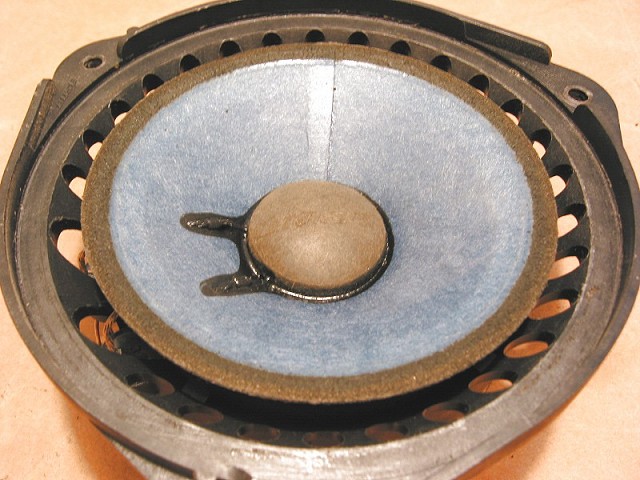

This left a nice clean surface for the new cloth edging.

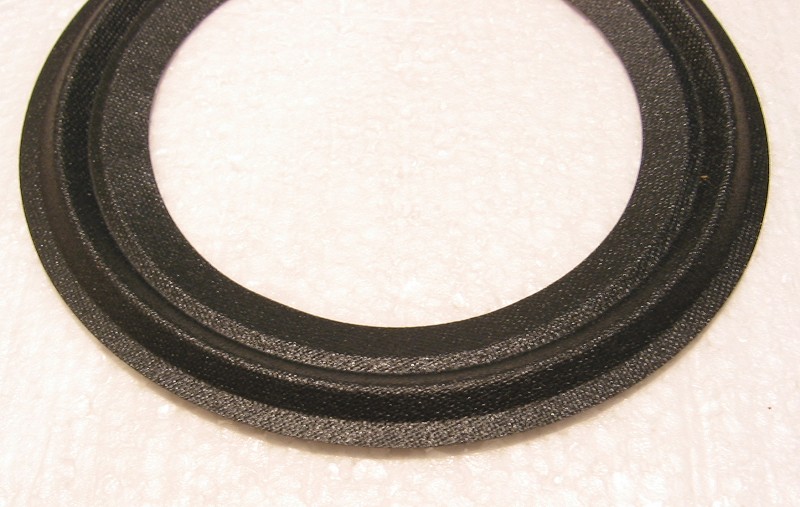

I went with the newer "V-Roll" cloth surround.

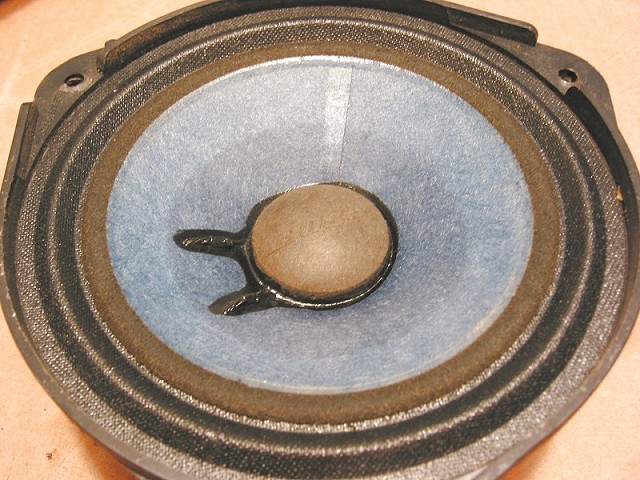

A trial fit before glueing.

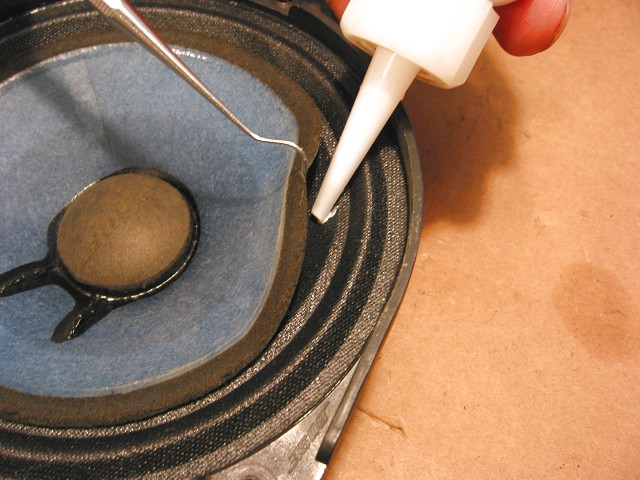

I first glued the surround to the underside of the cone.

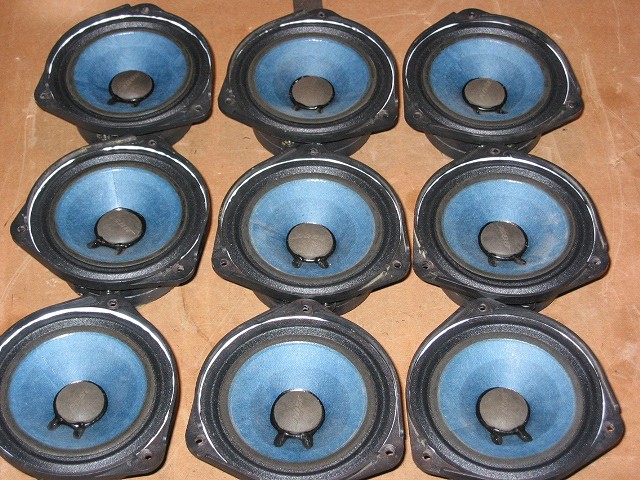

After letting that dry, I glued the outside edge to the frame.

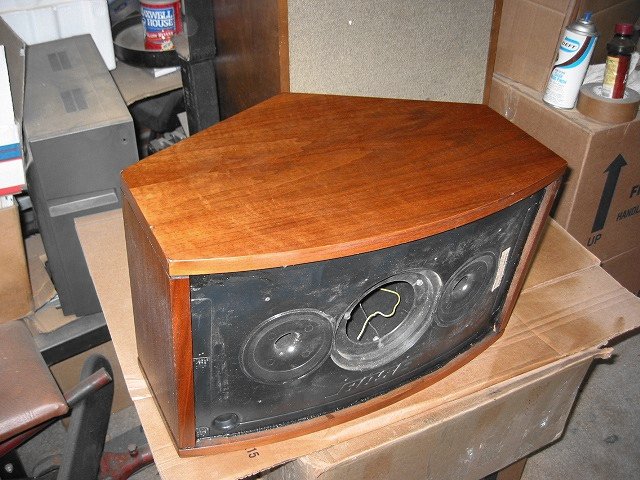

The cabinets needed some attention too.
So some hand sanding and a few coats of DEFT wood finish.

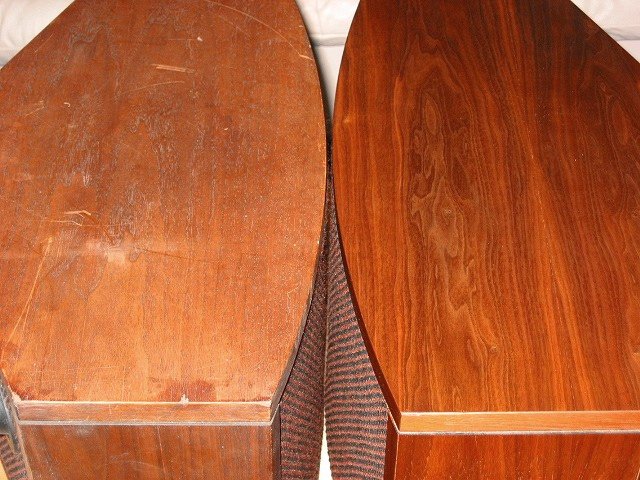

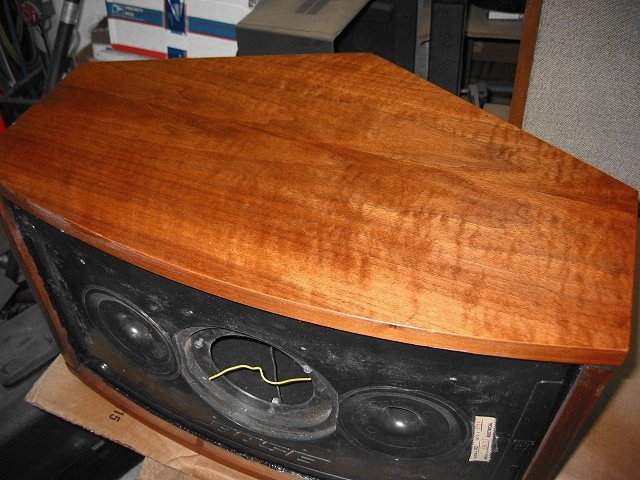

Here is a before and after. The flash gives them a red tint.

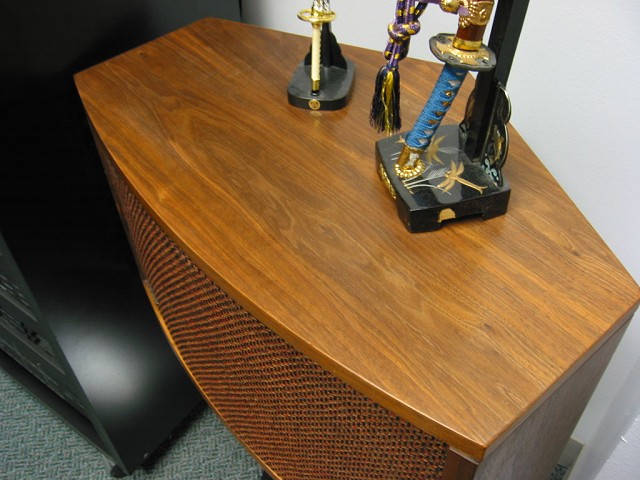

The picture on the right shows their natural walnut color.
You can read more on the refinish here: Bose Refinishing
