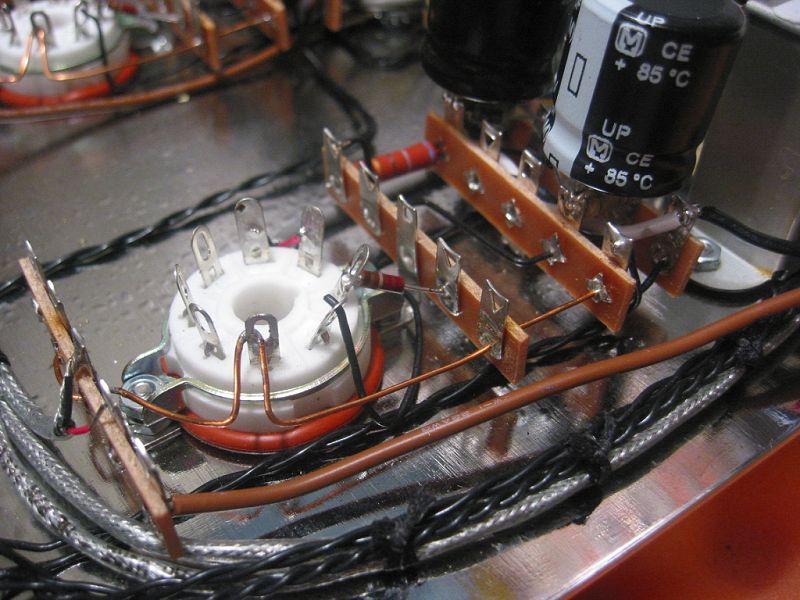

Trim one lead of a 220 ohm 1/4 watt carbon composition to about 1/4".
Attach the long lead to the lower hole of terminal 34 and attach the short lead to terminal B1
so that the body of the resistor is very close to terminal B1.
Solder terminals A1 and the lower hole of terminal 34, but be careful not to overheat the delicate resistor.
