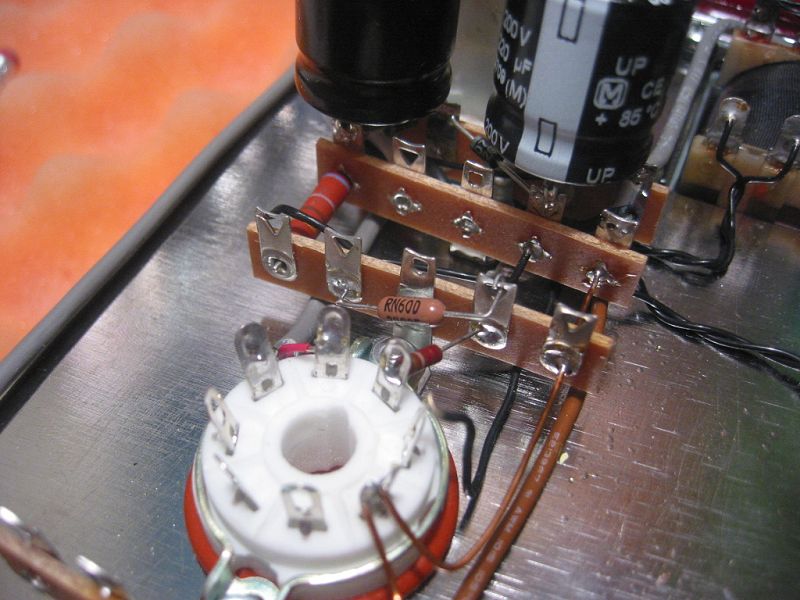

Attach one lead of a 249K ohm resistor into the ower hole of terminal 12
attach the other lead to the upper hole of terminal 14.
Solder the lower hole of terminal 12 but Do Not Solder terminal 14.


Image 82 of 104  -  79 kB
