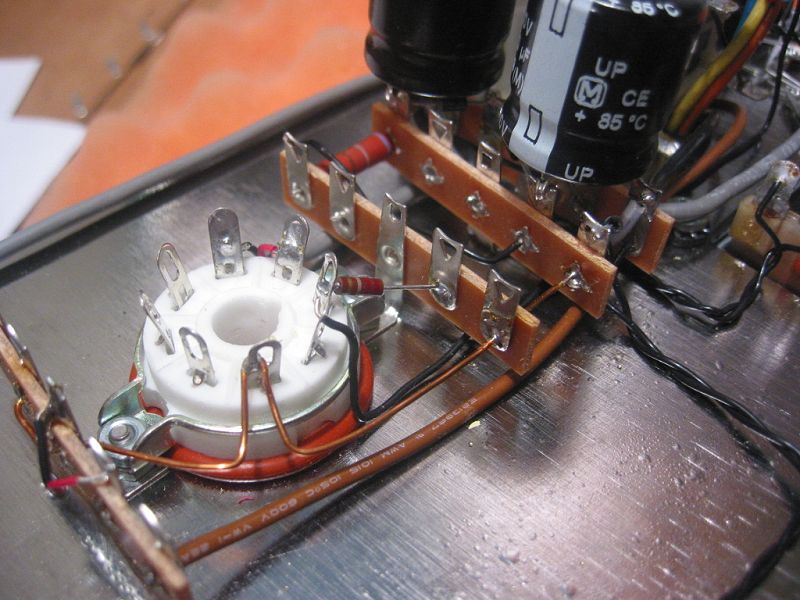

Trim one lead of a 220 ohm 1/4 watt carbon composition to about 1/4".
Attach the long lead to the lower hole of terminal 14 and attach the short lead to terminal A1
so that the body of the resistor is very close to terminal A1.
Solder terminals A1 and the lower hole of terminal 14, but be careful not to overheat the delicate resistor.


Image 80 of 104  -  86 kB
