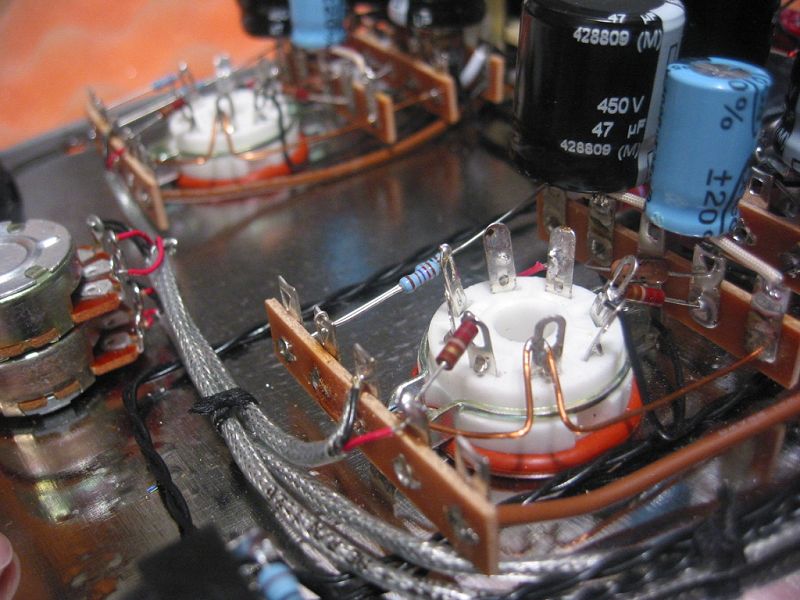

Trim one lead of a 1.27K ohm 1/4 watt carbon composition resistor to about 1/4".
Attach the long lead to the upper hole of termial 37.
Attach the short lead to terminal B6 so the body of the resistor is very close to B6.
Solder terminal B6, but Do Not Solder terminal 37.


Image 95 of 104  -  85 kB
