Wardsweb's Bottlehead S.E.X. Amp Build

<<-- Previous   --Index--   Next -->>

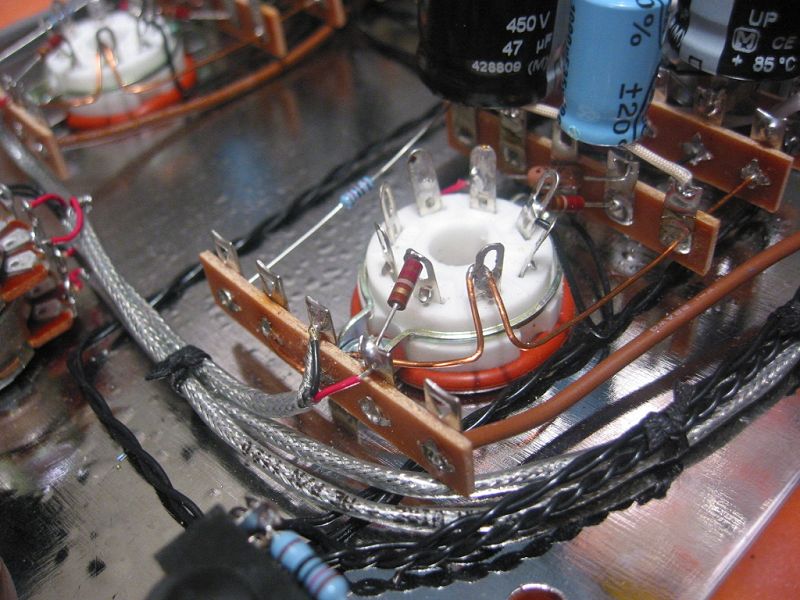

Trim one lead of a 220 ohm 1/4 watt carbon composition to about 1/4"
Attach the long lead to the lower hole of terminal 39
Attach the short lead to terminal B4 so the body of the resistor is very close to terminal B4.
Solder terminal B4 and the lower hole of terminal 39.
Be very careful not to overheat the relatively delicate carbon composition resistor at terminal B4.


Image 93 of 104  -  94 kB
