This one is a bit tricky, so take your time and fit slowly.

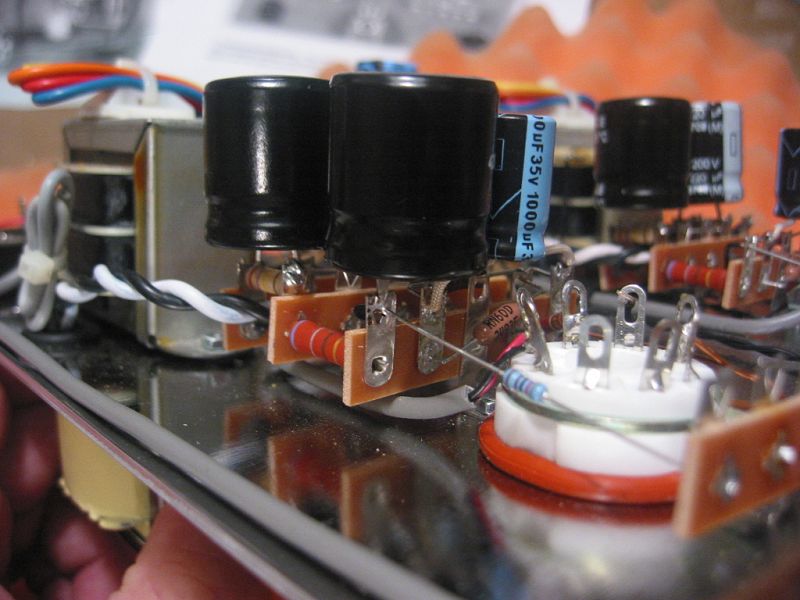

Bend the leads of a 47uF 450V capacitor at 90 degrees and parallel to each other,
so that the striped side lead fits into the upper hole of terminal 12
and the un-striped side lead fits into the upper hole of terminal 11.
Solder both terminals.


Image 90 of 104  -  67 kB
