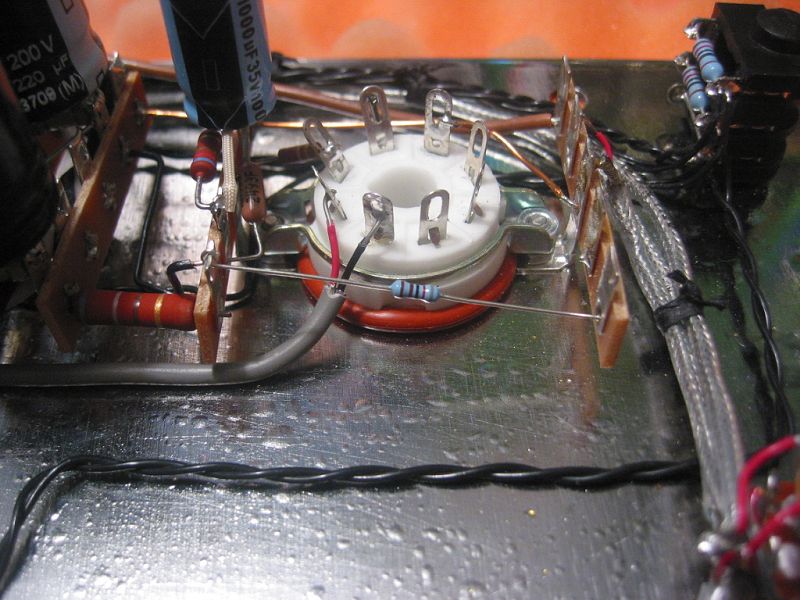

Attach one lead of a 8200 ohm resistor to the upper hole ofterminnal 31.
Do Not Solder this connection.
Attach the other lead to the lower hole of terminal 36 and solder terminal 36.


Image 89 of 104  -  91 kB
