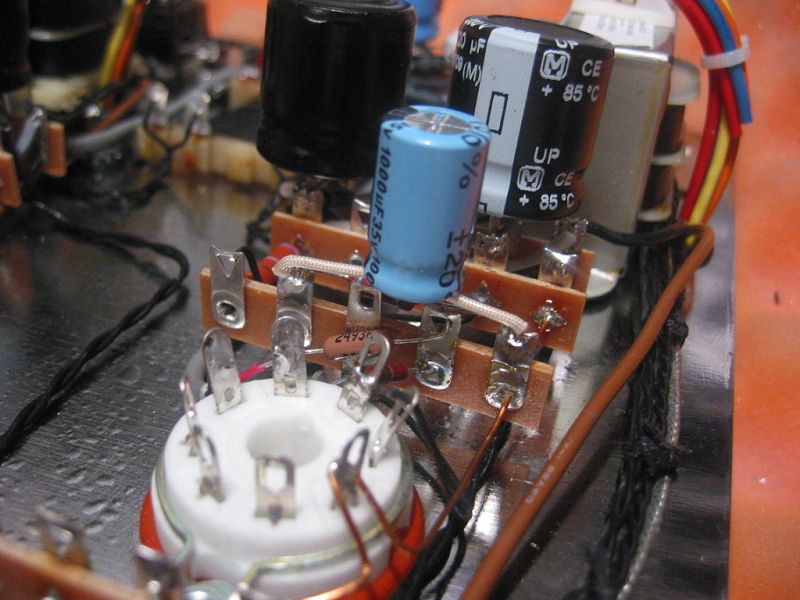

Insert the striped side lead of a 1000uF 35V capacitor into the upper hole of terminal 32
Insert the unstriped side lead into the upper hole of terminal 35.
Leave about 1/4" distance between the body of the capacitor and the terminals.
Solder both terminals, trim excess and bend the leads up 90 degrees, so the body stands vertically.


Image 87 of 104  -  77 kB
