AMPLIFIER CIRCUIT

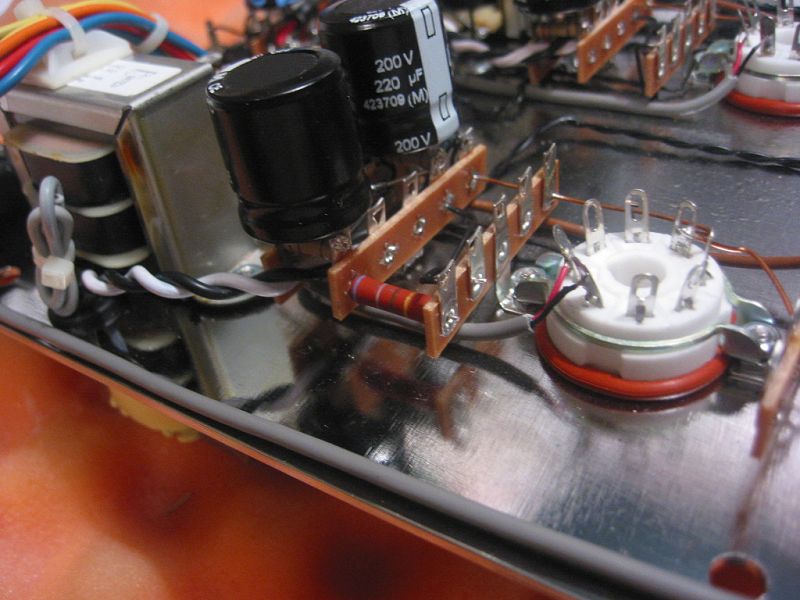

Trim the leads of a 680 ohm 3 watt
resistor to about 1/4".
Attach one end to the lower hole of terminal
6 and attach the other end to the lower hole of terminal 11.
You will have
to spread the two terminal strips apart a little to do this.
Solder the lower
hole of terminal 6 and the lower hole of terminal 11.
