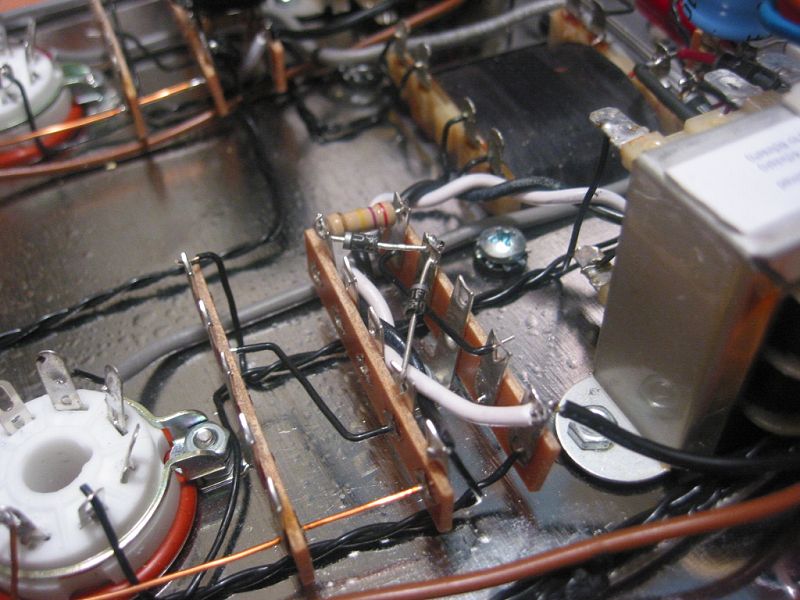

Attach the striped end lead of a UF4007 diode to the upper hole of terminal 22 and solder.
Attach the black end lead to the upper hole of terminal 29. Do Not Solder.


Image 74 of 104  -  85 kB
