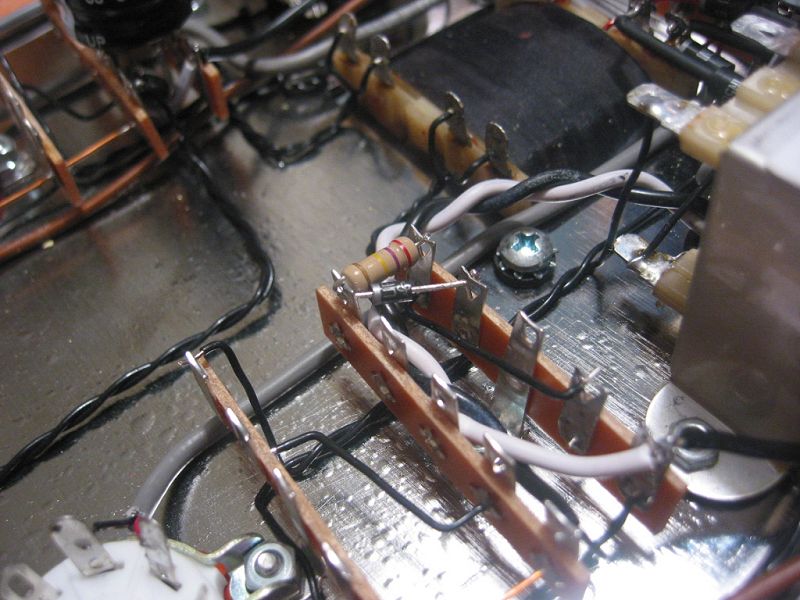

Attach the striped end lead of a UF4007 diode to the upper
hole of terminal 26
and the black end lead to the upper hole of terminal 22.
Do Not Solder.
