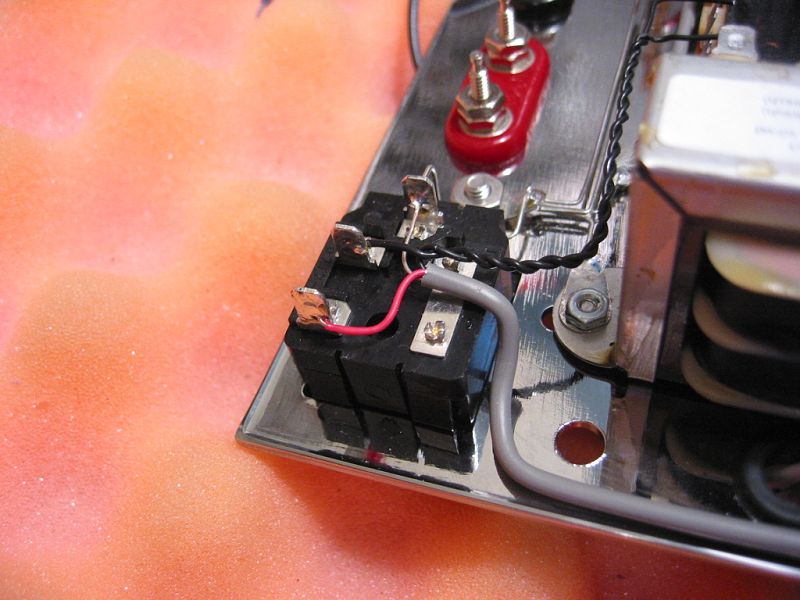

Using the end prepped 3-1/4", begin by fully inserting the drain wire though terminal E of the power entry module.
Solder terminal E and trim the excess wire. Again be careful to not melt the plastic body of the entry module.
Attach and solder the black wire to the power transformer terminal 1.
Attach and solder the red wire to the power entry module labeled "L".


Image 6 of 104  -  71 kB
