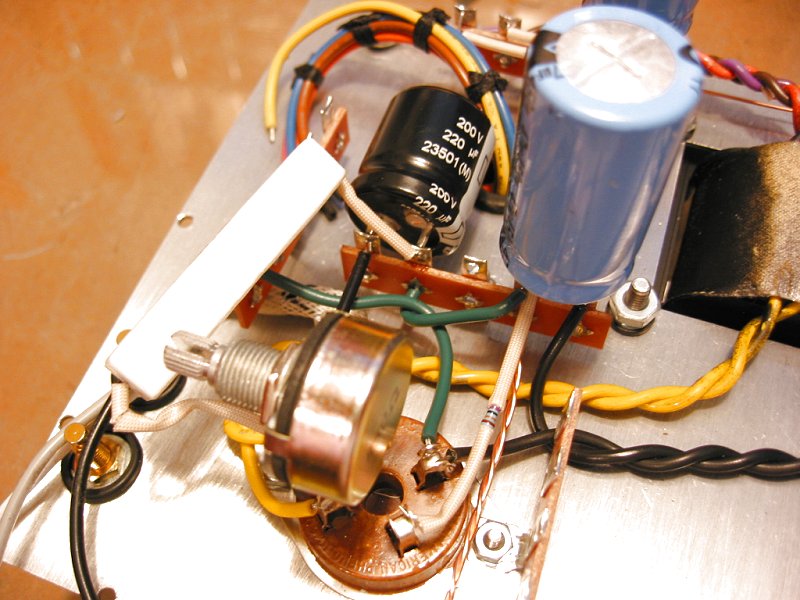

Here is the 220uF 200v capacitor between terminals #11 and #12.
Note the negative side of the cap is to terminal #12.
You will also notice the black wire is back on terminal #11.
Image 27 of 52 - 98 kB
