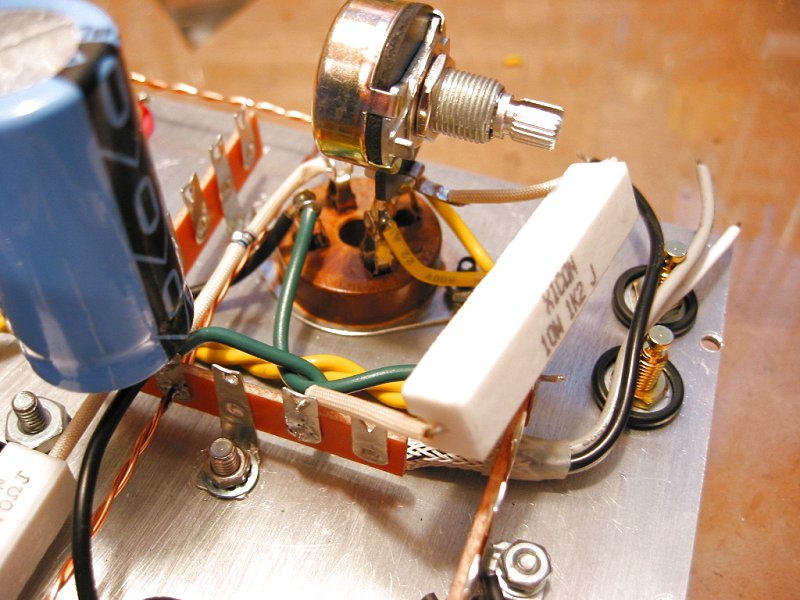

Now here we have the 1.2K ohm 5 watt resistor between the center post of the hum pot and terminal #12.
The black wire between the center post of the hum pot and terminal #11 was removed termporily while fitting the resistor.
Again the resistor leads are covered with fiberglas sleeving not found in the kit.
