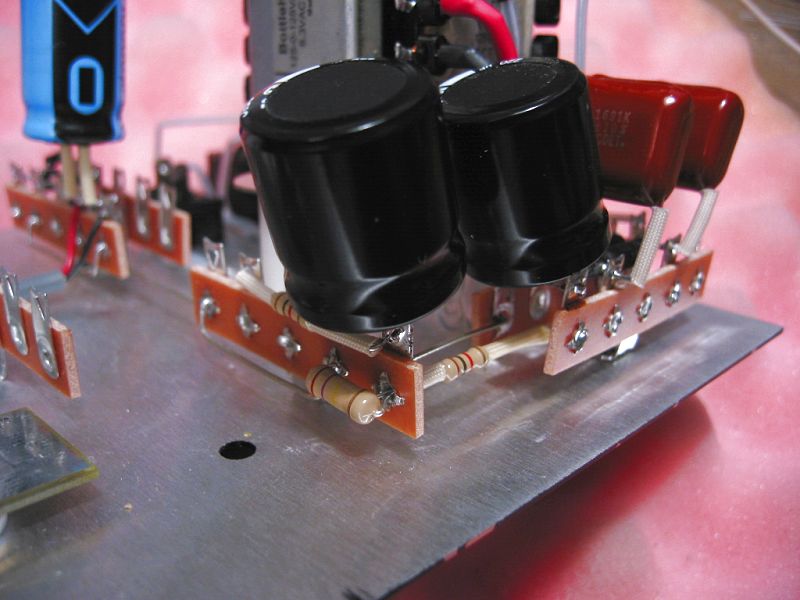

Here is the 220uF 200V cap between terminals 14 and 15 with the striped side going to terminal 14.
Also the 270 K ohm resistor (RED-VIO-YEL-gold) between the same terminals using the lower holes.
Image 28 of 65 - 62 kB
