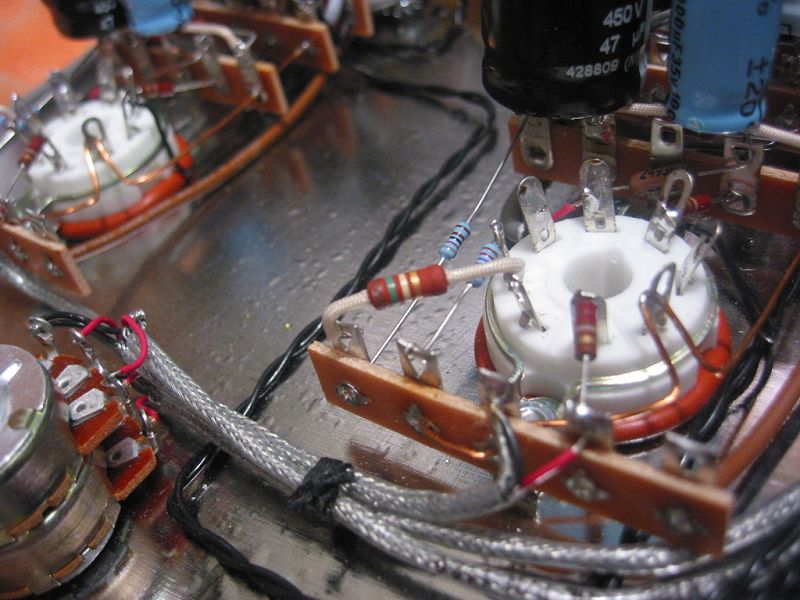

Attach one lead of a 150K ohm 2 watt resistor to terminal B5.
Arch the leads of the resistor so that it easily clears the 1.27K ohm resistor
and attach the other lead to the upper hole of terminal 36.
Do Not Solder either terminal.


Image 97 of 104  -  84 kB
