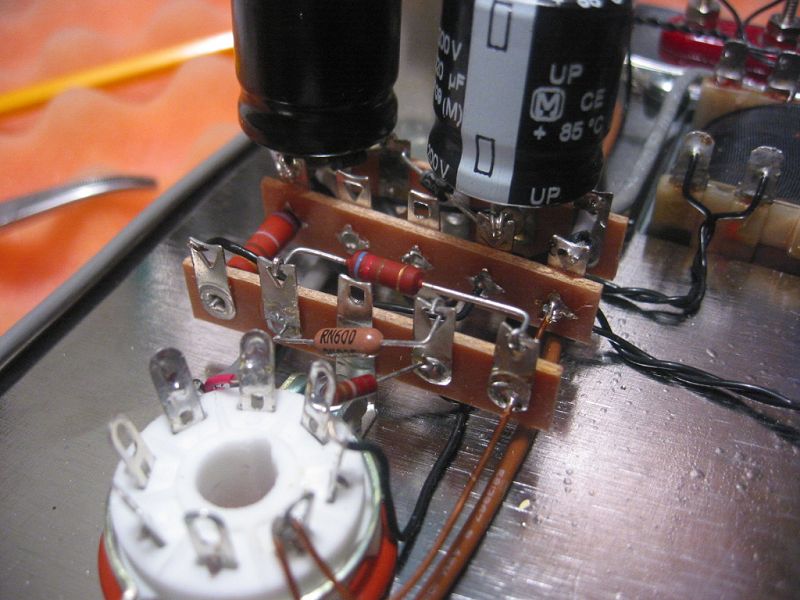

Attach one lead of a 620 ohm 2 watt resistor to the upper hole of terminal 12
attach the other end to the upper hole of terminal 15.
Do Not Solder these terminals.


Image 84 of 104  -  78 kB
