HEADPHONE JACK WIRING

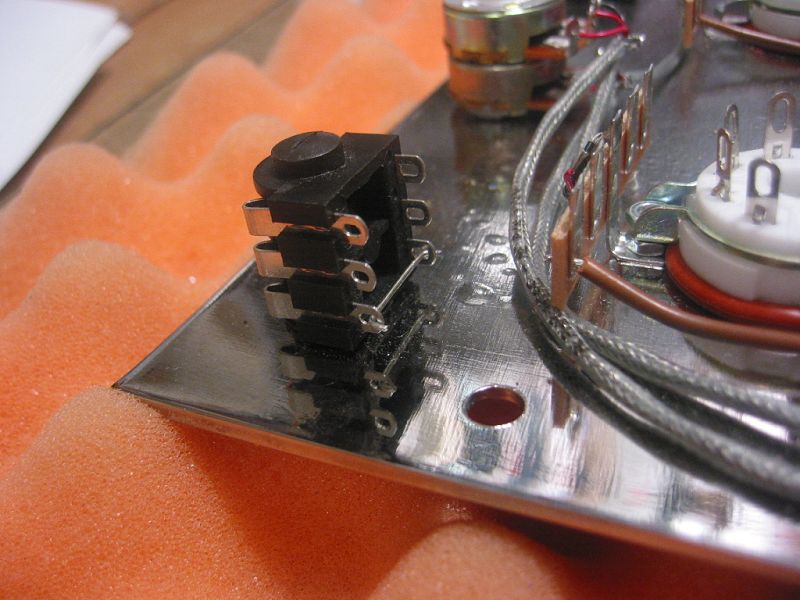

Cut a piece of buss wire to fit and attach it to the lowest pair of terminals
(closest to the chassis) on the headphone jack. Do not solder.


Image 37 of 104  -  75 kB
