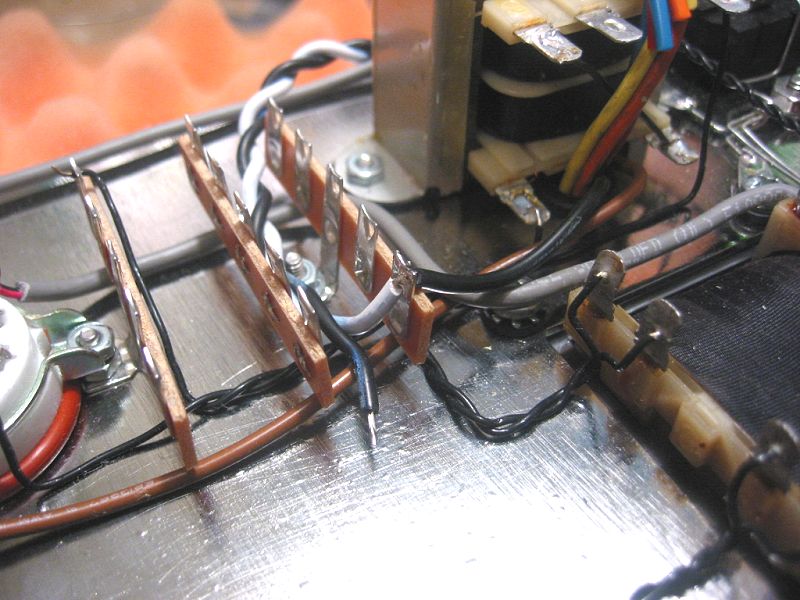

Twist the black and white wires from the autoformer secondary together.
Trim to fit, strip and attach the white wire to the upper hole of terminal 5. Solder this connection.


Image 31 of 104  -  90 kB
