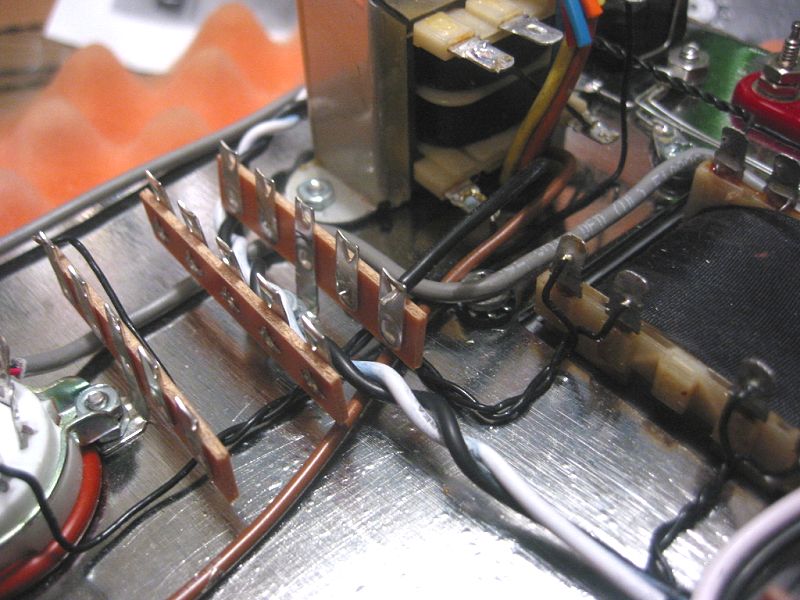

OUTPUT AUTOFORMER WIRING - Right Channel

Begin with the right cahnnel autoformer, nearest the power entry module.
Trim the black wire from the primary side of the autoformer to fit to reach the top hole of terminal 5.
Strip back 1/4" and attach but do not solder to the upper hole of terminal 5.


Image 29 of 104  -  90 kB
