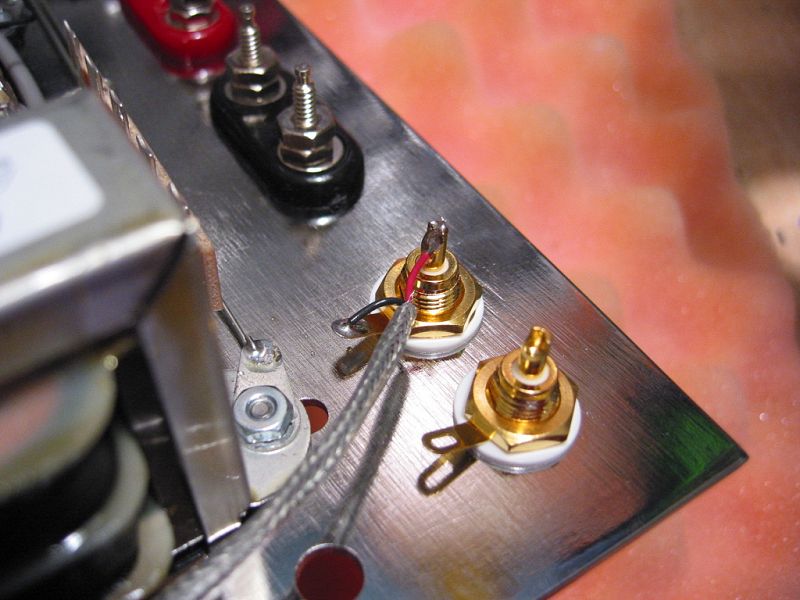

Route the shielded twisted pair cdable under terminals 39, 34, 29 and 24,
back around the outside of the plate choke and over to the red RCA jack nearest the binding posts.

Attach the solder the black wire to the ground solder tab of the red RCA jack.
Insert the end of the red wire into the solder cup in the center pin of the red RCA jack and solder.
