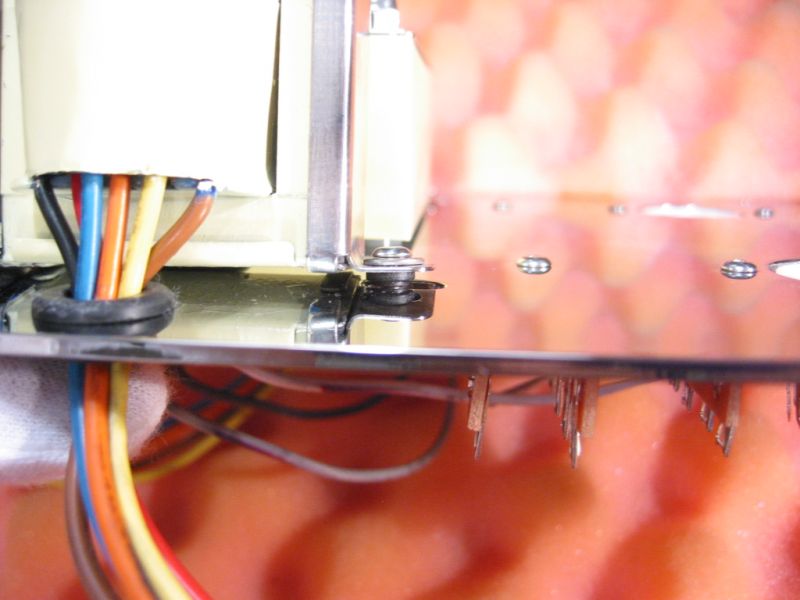

Place a #6 shoulder washer as far inboard as possible in each slot on the top side of the chassis on the left side.
Line up the autoformer on the washers. Holding the autoformer in place, insert a #6 screw into each mounting hole.


Image 26 of 32  -  48 kB
