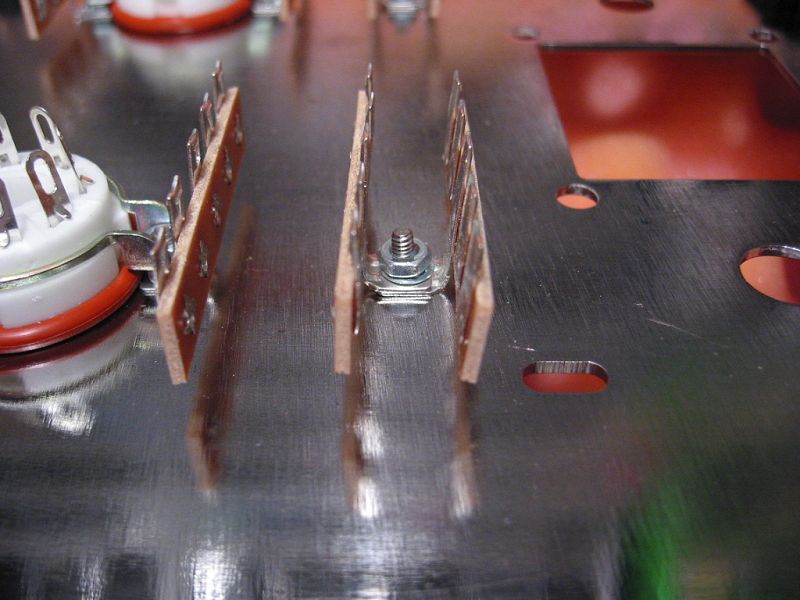

Two more terminals strips go behind the octal sockets. In one hole insert a 4-40 x 1/4 screw from the top.
Slip two terminal stips "back to back" over the #4 screw, slip a #6 lockwasher over the end of the screw and secure with a #4 nut.
Repeat for the other side.
