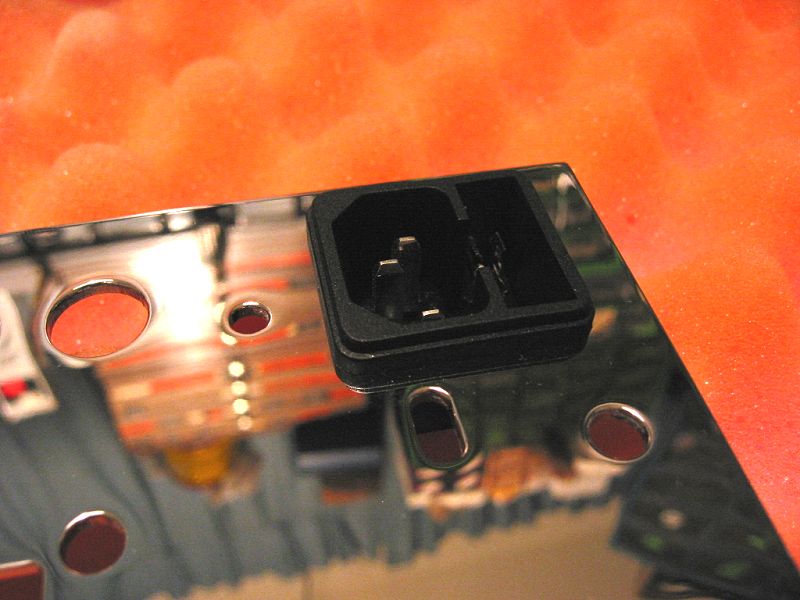

First instal the power entry module by snapping it into the large rectangular hole at the rear of the chassis.
Be sure to get the power cord pins oriented to the inside of the chassis and the fuse holder to the outside.


Image 1 of 32  -  64 kB
