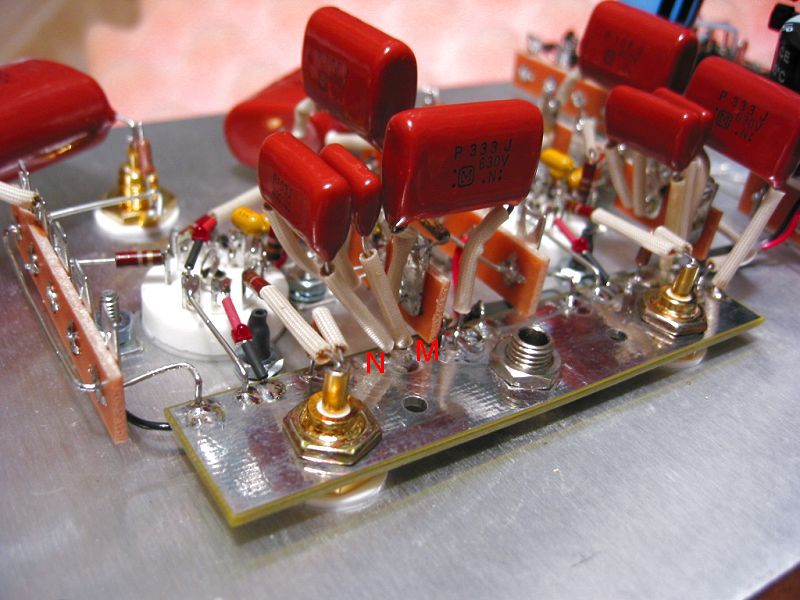

The last thing to do are these caps for each channel.
A 0.01uF (P103J) 400V cap between terminal 39 and hole "N" and a 0.0012uF (P122J) cap between terminal 39 and hole "M"
Image 61 of 65  -  80 kB
