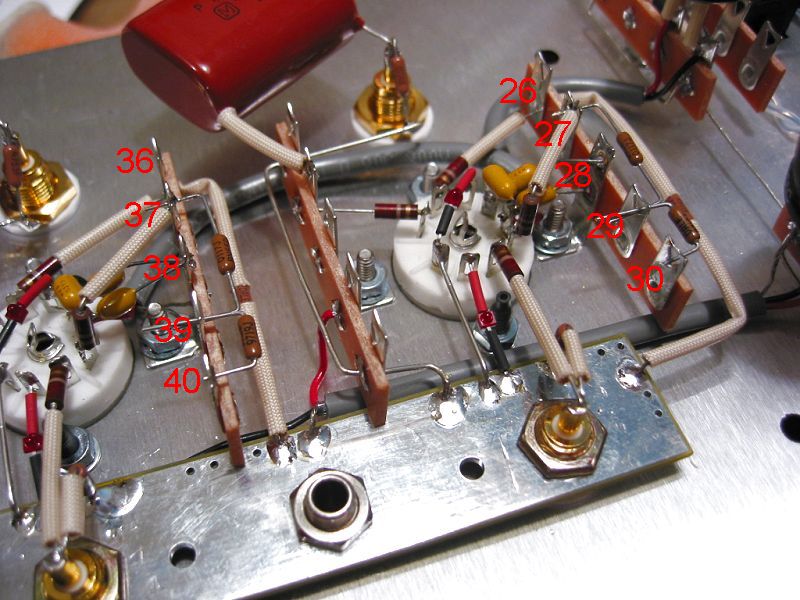

Then a 9.31K (9311F) resistor between terminals 29 and 30. Solder only to terminal 30 at this time.
Repeat for terminals 39 and 40. Solder only to terminal 40 at this time.
Image 56 of 65  -  95 kB
