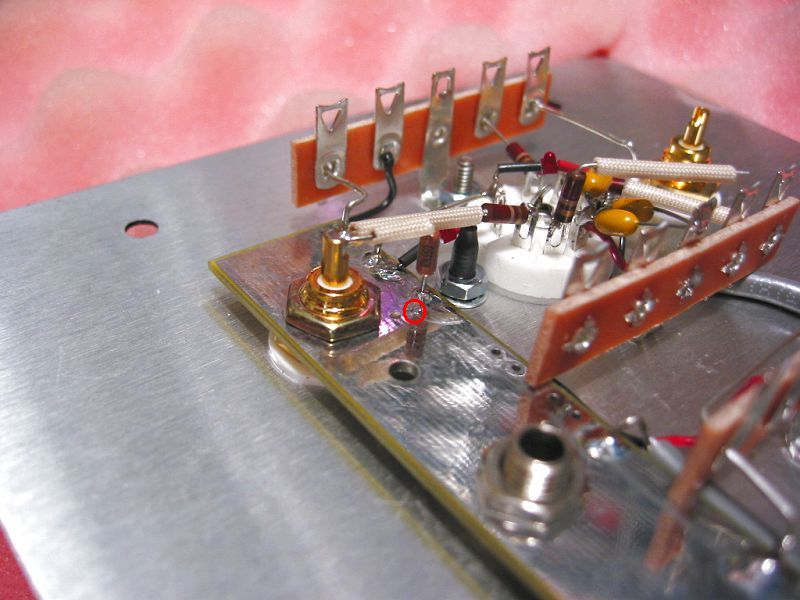

A 47.5K (4752F) resistor goes between the solder cup and hole "O" in the ground plane.
Repeat for the other input jack using hole "F".
Image 50 of 65  -  69 kB
