page 23 - Reverse recovery spike filter (RRSF)
Ok you thought the bridge rectifier was challenging, well hold on, you ain't seen nothing yet.
Patience Patience Patience is required now. Take it slow and take a break if you need to.

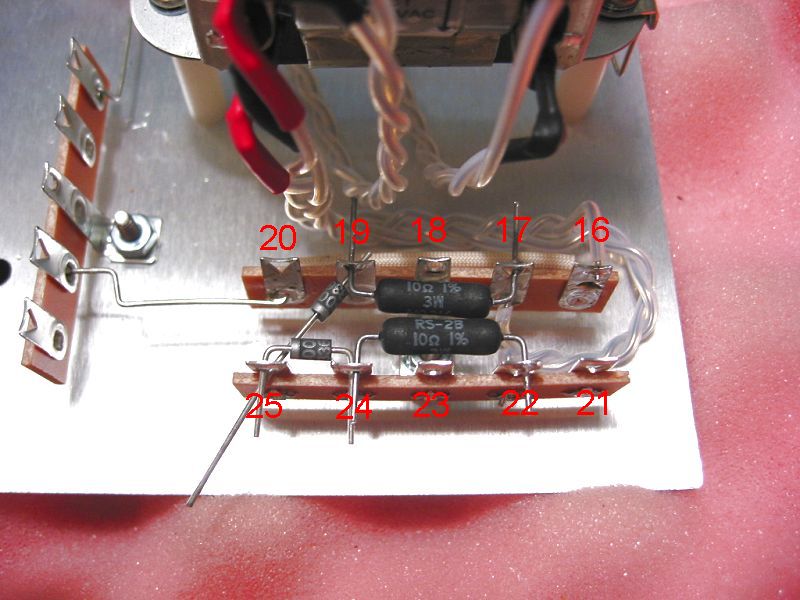

It starts easy with the two 10 ohm 3W resistors and two UF4007 diodes.

Image 19 of 65 - 72 kB
