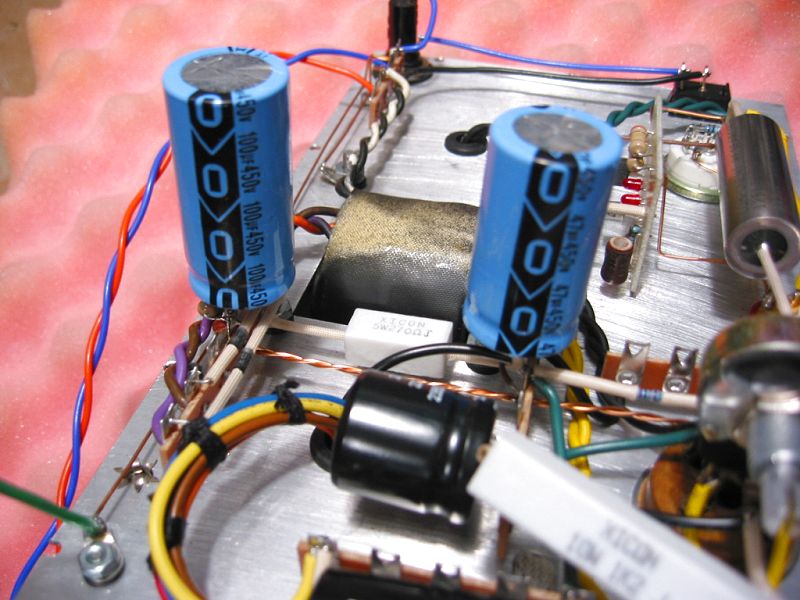

Here the 47uF capacitor across terminals #4 & #5 is replaced with a 100uF 450V.
You can see it is only slightly taller than the 47uF 450V on the right.
