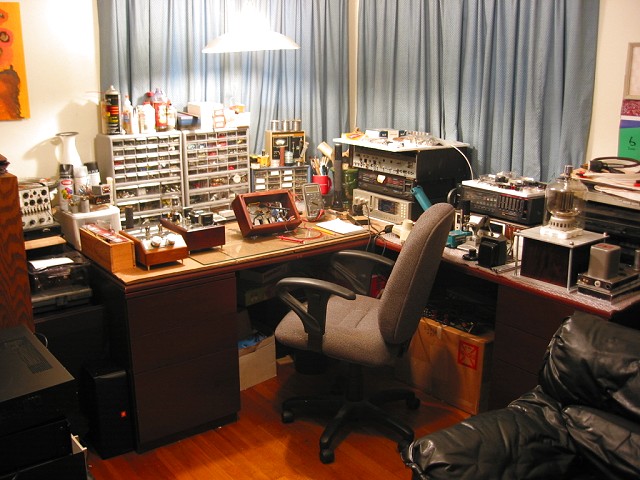

This is where all the magic happens - my audio room.
(click on the pic to enlarge)
Here are the voltage readings I got upon completion with the C4S installed
| Terminal | Voltage | with C4S | Left Chnl | C4S change* | Right Chnl | C4S change* |
| 1 |
315 ac
|
322
|
321
|
|||
| 2 |
315 ac
|
322
|
321
|
|||
| 5 |
395 dc
|
404
|
402
|
|||
| 15 |
380 dc
|
390 dc
|
384
|
387
|
377
|
|
| A1 |
60 dc
|
62
|
61
|
|||
| A2 |
365 dc
|
376
|
374
|
|||
| A4 |
60 dc
|
62
|
61
|
|||
| B1 |
380 dc
|
0
|
0
|
0
|
||
| B2 |
185 dc
|
0
|
0
|
0
|
||
| B3 |
188 dc
|
0
|
0
|
0
|
||
| B6 |
185 dc
|
155 dc
|
215
|
182
|
225
|
185
|
| B8 |
2.0 dc
|
2.3
|
1.9
|
2.3
|
1.9
|
|
| Left Terminal C4S |
295 dc
|
275
|
292
|
283
|
289
|
* Replaced one of the parrallel 499 ohm resistors with a 820 ohm on the C4S board.
