Wardsweb's Bottlehead Paramour Build

<<-- Previous   --Index--   Next -->>

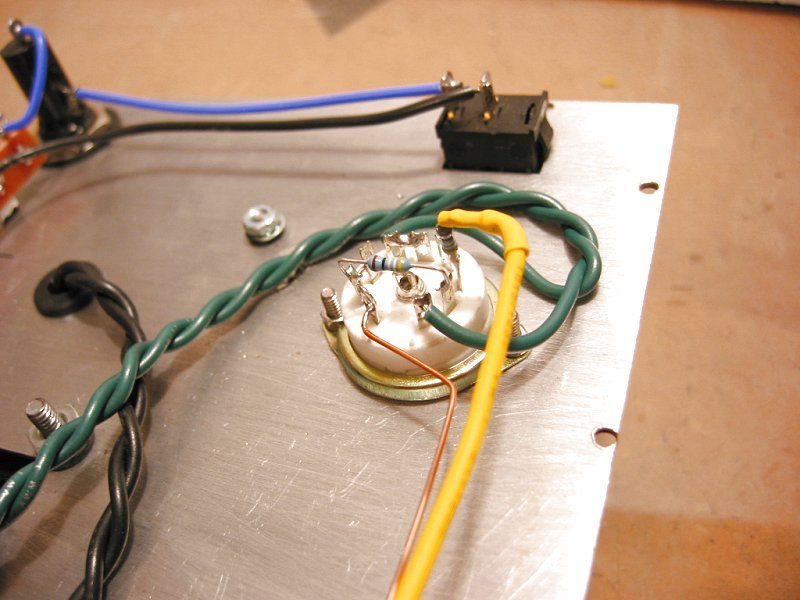

Here I soldered the 499 ohm cathode resistor between terminals #B8 and #B2(ground).
The manual says to ground this resistor to the RCA jack.
This was not necessary with the C4S mod, as the RCA jack ground is already run to terminals #1, #2 and #3.


Image 40 of 52  -  75 kB
