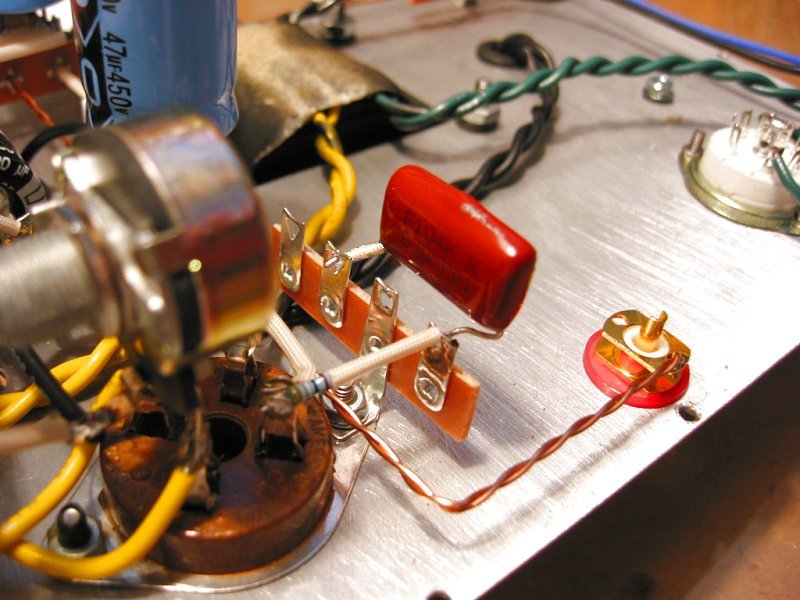

Next is the .1uF 630V capacitor between terminals #17 and #19.

Again I omit some parts here because I'm going straight to the C4S mod.
So, I won't be running the white wire between terminal #19 and terminal #B3 or the yellow wire from #15 to B1.
