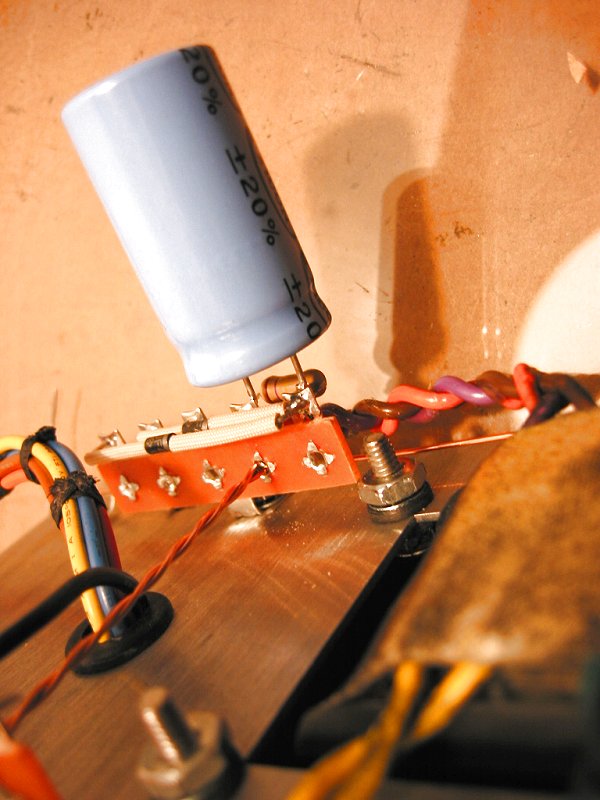

Here you see the 270K ohm bleeder resistor and 47uF capacitor across terminals #4 & #5.
Make sure the negative side marked by the black stripe on the capacitor is on terminal #4.

Image 11 of 52 - 78 kB
