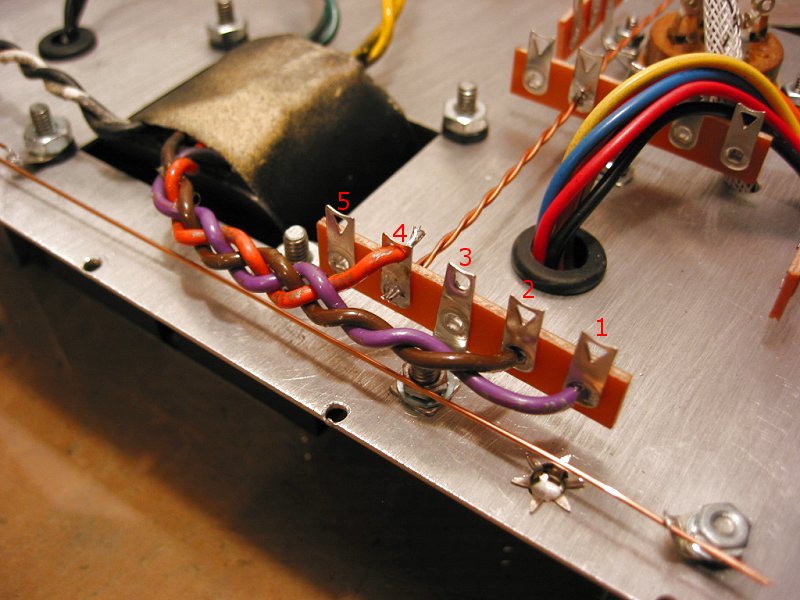

Here the high voltage secondary wiring is braided.
Violet to terminal #1 lower hole, Brown to terminal #2 lower hole and Orange to terminal #4 upper hole.
Note the wiring is not as pictured in the color photo sent with the kit.
The colors are the same but they do not exit the transformer on the same sides as the picture.
