Wardsweb's Bottlehead Paramour Assembly

<<-- Previous   --Index--   Next -->>

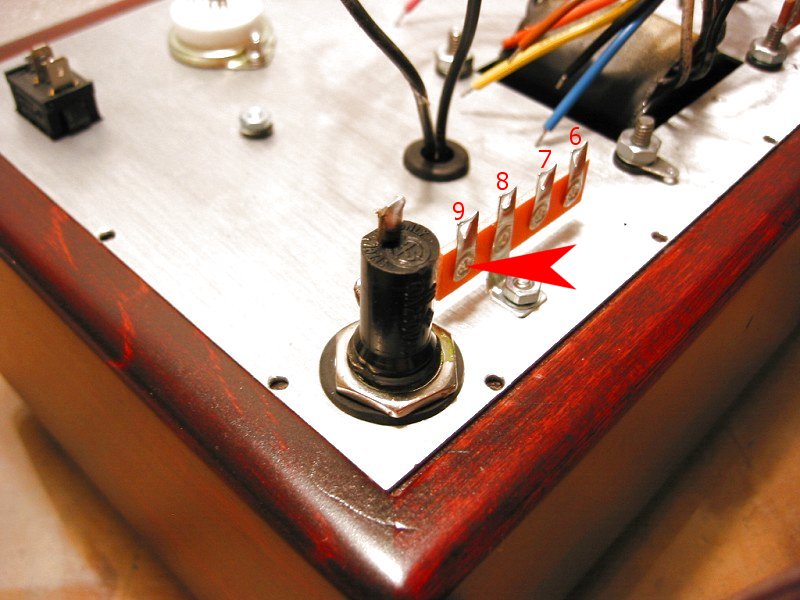

Fuse holder I added to the design shown from the bottom of the chassis.
Note red arrow where the terminal strip has been shortened to remove terminal 10.
I did this to accomodate the fuse holder. Terminal 10 is not used anyway.
