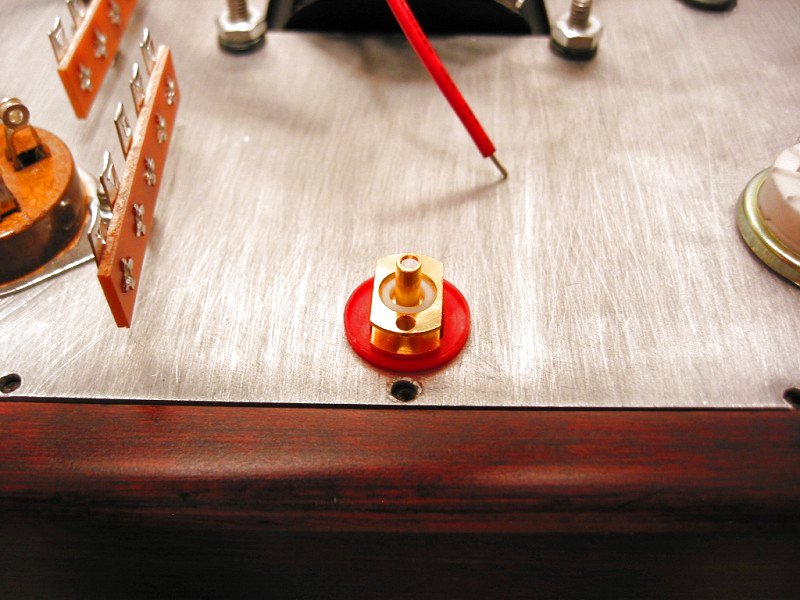

RCA jack shown from the bottom of the chassis. (Again this is an aftermarket RCA jack that is not supplied in the kit)
If you are using the RCA jack supplied in the kit be sure to install the ground tab facing the 9 pin socket..

Image 17 of 26 - 93 kB
