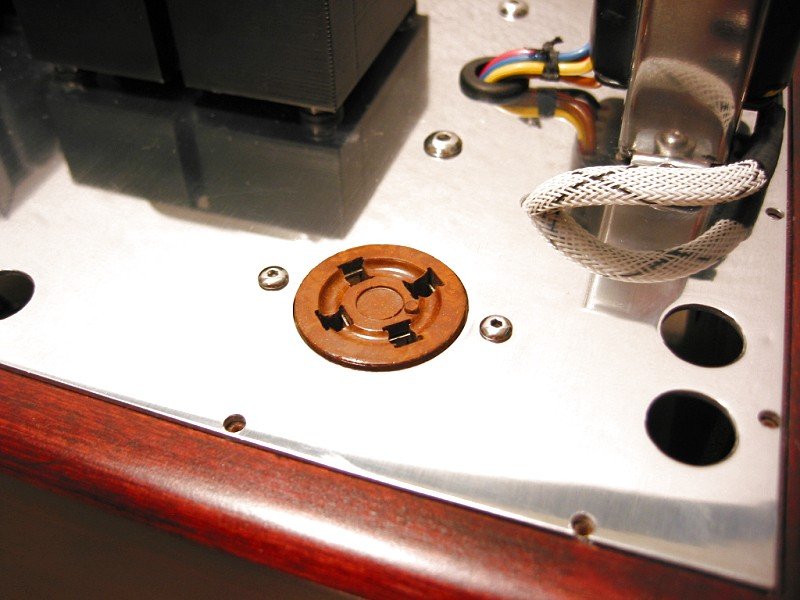

Here is the larger tube socket installed. Again with special stainless steel button head screws.
Note orientaion of the socket with the larger holes (pin1 and pin 4) facing towards the speaker output binding posts.
(stainless button head screws not supplied in the kit)

Image 12 of 26 - 80 kB
