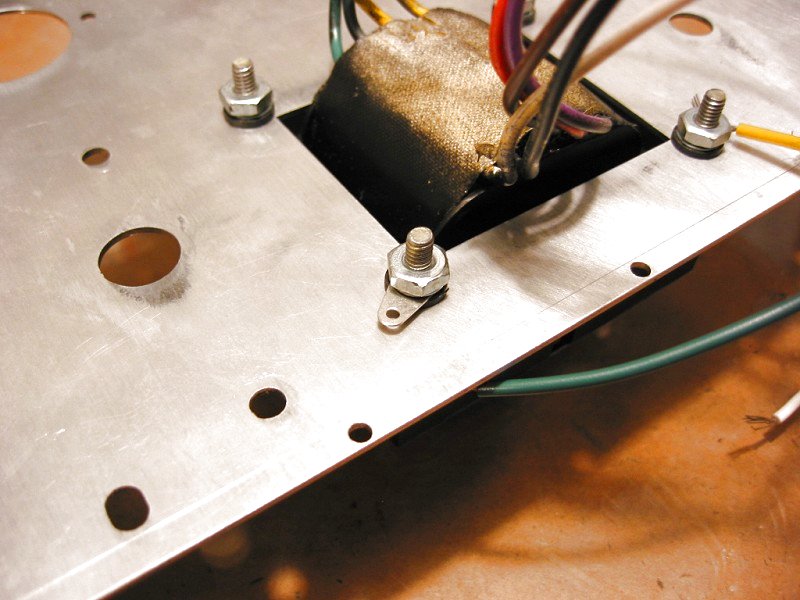

Transformer installed (note wire color orientation) with #8 sholder washers, lock washers and nut.
Note back post with solder lug on top of the shoulder washer.

Image 2 of 26 - 87 kB
